Aluminum Ladder

Aluminum Ladder

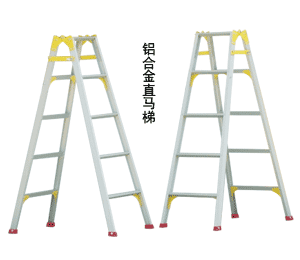

Click the picture to enlarge

Features

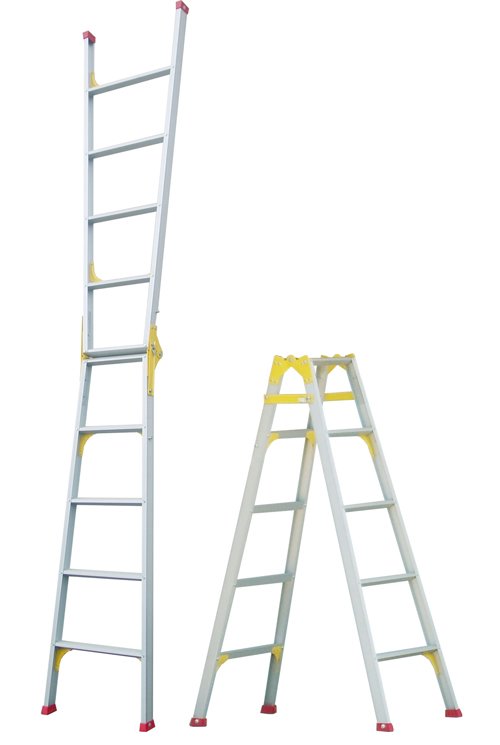

1、High-strength aluminum alloy profiles(Welding),A ladder with two, both horse ladder and straight ladder form of dual-use
2、With a special locking device, safe portable
3、Pedal profile for the tubular, solid non-slip
4、Suitable for decoration, construction, factories, shopping malls, supermarkets, hotels, family room operations

*:Labeled vertical ladder, please refer to instructions for use, is strictly prohibited anti-used。


Model Name A-length (m) Long straight(m) Tread plate distance (mm) Tread plate width (mm) Weight(kg) Maximum load(kg)
LMT-3 Aluminum alloy vertical & horse ladder(3档) 0.85 1.7 304 40 4.8 100
LMT-4 Aluminum alloy vertical & horse ladder(4档) 1.2 2.4 304 40 5.5 100
LMT-5 Aluminum alloy vertical & horse ladder(5档) 1.5 3.0 304 40 6.8 100
LMT-6 Aluminum alloy vertical & horse ladder(6档) 1.8 3.6 304 40 8.2 100
LMT-7 Aluminum alloy vertical & horse ladder(7档) 2.1 4.2 304 40 9.5 100
LMT-8 Aluminum alloy vertical & horse ladder(8档) 2.4 4.8 304 40 12.2 100


Features
Using advanced turning riveting way, more solid, more secure

Model Name Specifications Weight(kg) Maximum load(kg)
Long(L) width(W) High(h1) High(h2)
Lpt-100 Aluminum alloy platform mobile ladder 1100 600 1000 800 33 250
Lpt-120 Aluminum alloy platform mobile ladder 1300 600 1200 800 39 250
Lpt-150 Aluminum alloy platform mobile ladder 1500 600 1500 800 46 250
Lpt-200 Aluminum alloy platform mobile ladder 1900 600 2000 800 61 250
Lpt-250 Aluminum alloy platform mobile ladder 2300 600 2500 800 72 250
